eXT2 SERIES HMI

The four different sizes of CIMON HMIs for their eXT2 series

Slim, bright, and built for smart industry.

Ultra-Slim Yet Rugged Design

Space-saving profile built to withstand industrial abuse - maximize cabinet space without sacrificing durability.

1200-Nit Maximum Brightness

Exceptional visibility in direct sunlight or high-ambient light conditions on select models.

Thermometer at low temp and another thermometer at high temp

Extended -20°C to 70°C Range

Widest operating temperature in the CIMON HMI lineup for extreme environments.

400% Faster Processing

Quad-core ARM Cortex-A53 delivers lightning-fast screen changes and data updates.

Complete Environmental Sealing

IP66/68/69K - protected against dust, immersion, high-pressure jets, and corrosion.

HMI emitting a signal with lines connected to the bottom of it

Enhanced Connectivity (DF Models)

Dual Gigabit Ethernet, audio output for alarms, and microSD for data logging and recipe storage.

Powerful, Flexible, Complimentary HMI Visualization Software

Double-sided arrows pointing in six different directions

Seamless Device Connectivity

Effortlessly connect to various PLCs and devices using built-in drivers for Modbus, EtherNet/IP, OPC UA, MQTT, and more.

Real-Time Data Logging & Trends

Track digital and analog data over time with built-in logging tools and CSV exporting, ideal for diagnostics, audits, and performance monitoring.

Custom Automation with JavaScript ES5

Define intelligent, automated behavior for any object using an embedded JavaScript scripting environment.

Built-In Security and Audit Trail

Manage user roles and permissions, track all system changes, and ensure compliance with features like electronic audit logs, compliant with the FDA 21 CFR Part 11.

Built-In Offline & Online Simulators

Test and debug HMI projects in real time with Canvas’ integrated simulators.

Flexible Design for Any Application

Design dynamic interfaces with drag-and-drop objects, scalable vector graphics, multi-language support, and custom font integration.

Learn More

PRODUCT FAQ

R-DE (Base): IP66 front protection, 2 serial ports, 1 Ethernet port, 1 USB-C tool port, and 1 USB Type-A port.

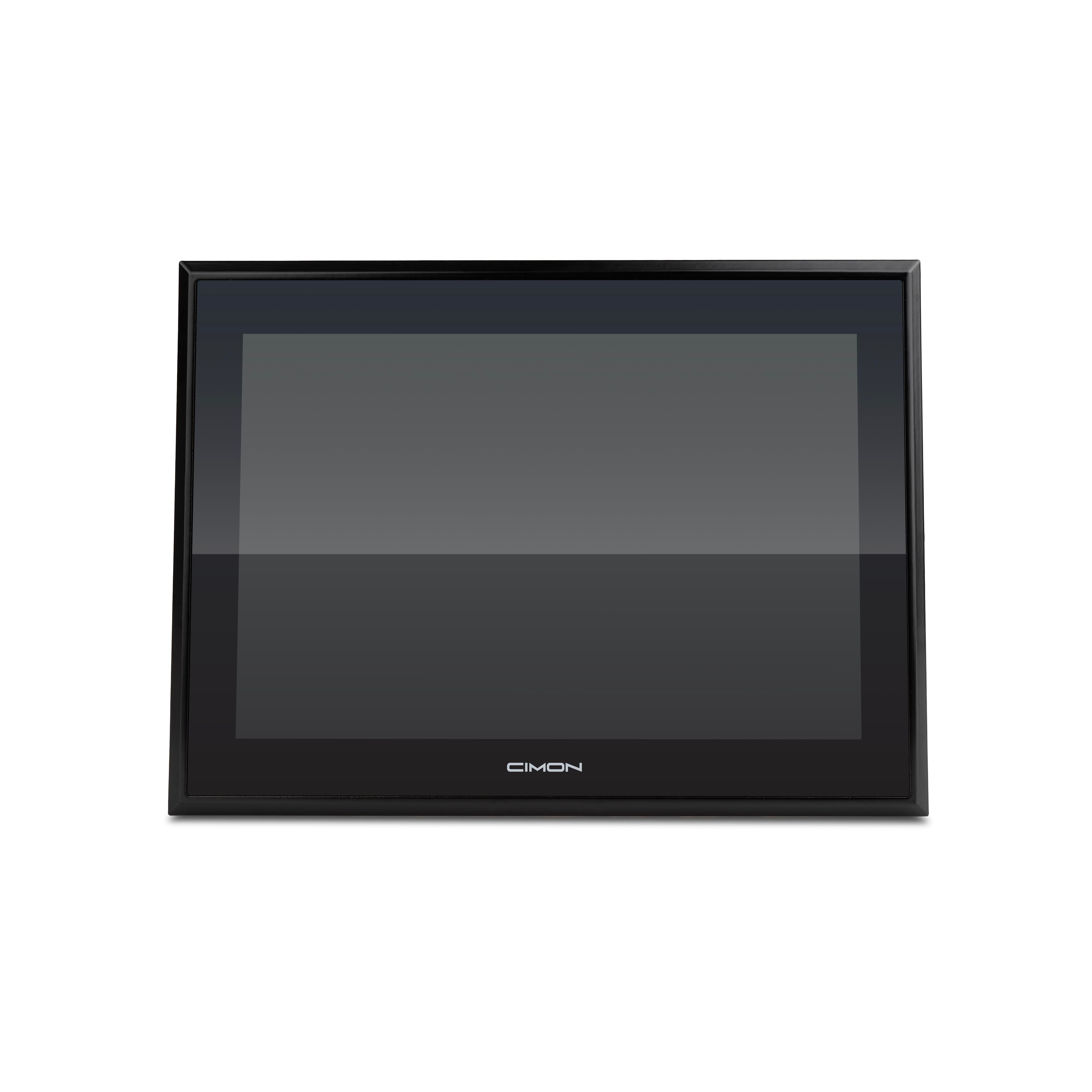

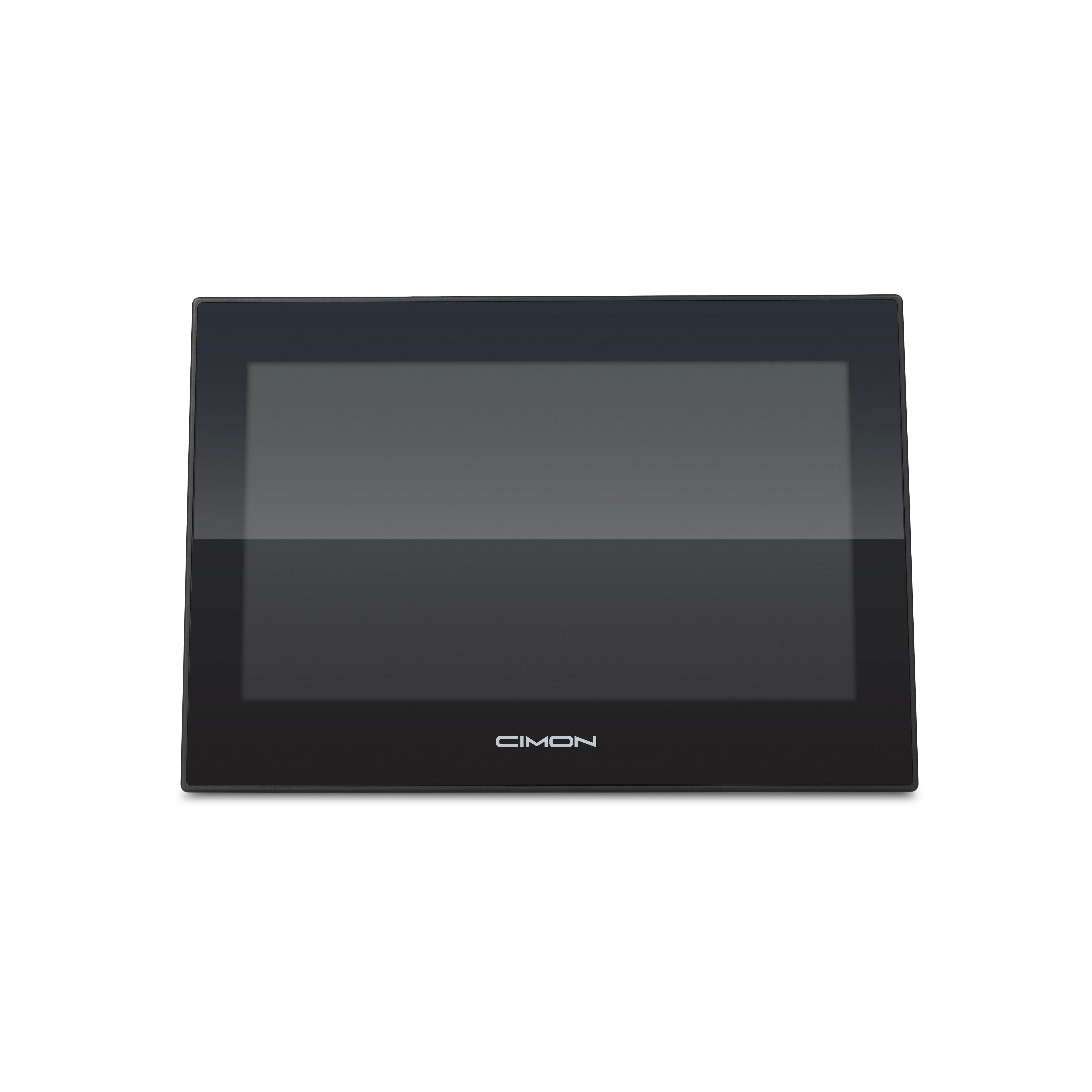

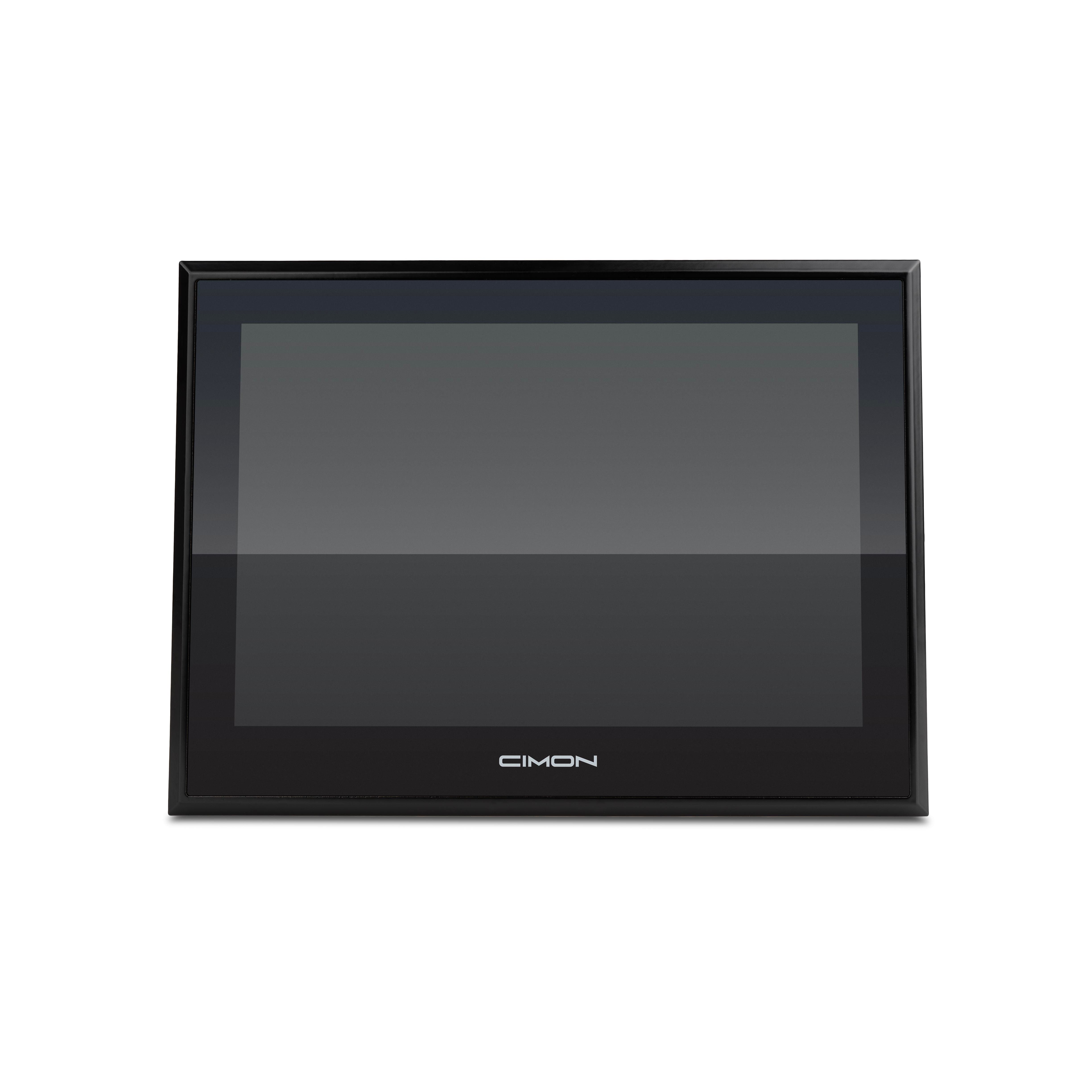

R-DF (Advanced): IP68 front protection, 2 serial ports, 2 Ethernet ports, 1 USB-C tool port, 1 USB Type-A port, 1 microSD slot, and 1 audio-out port.

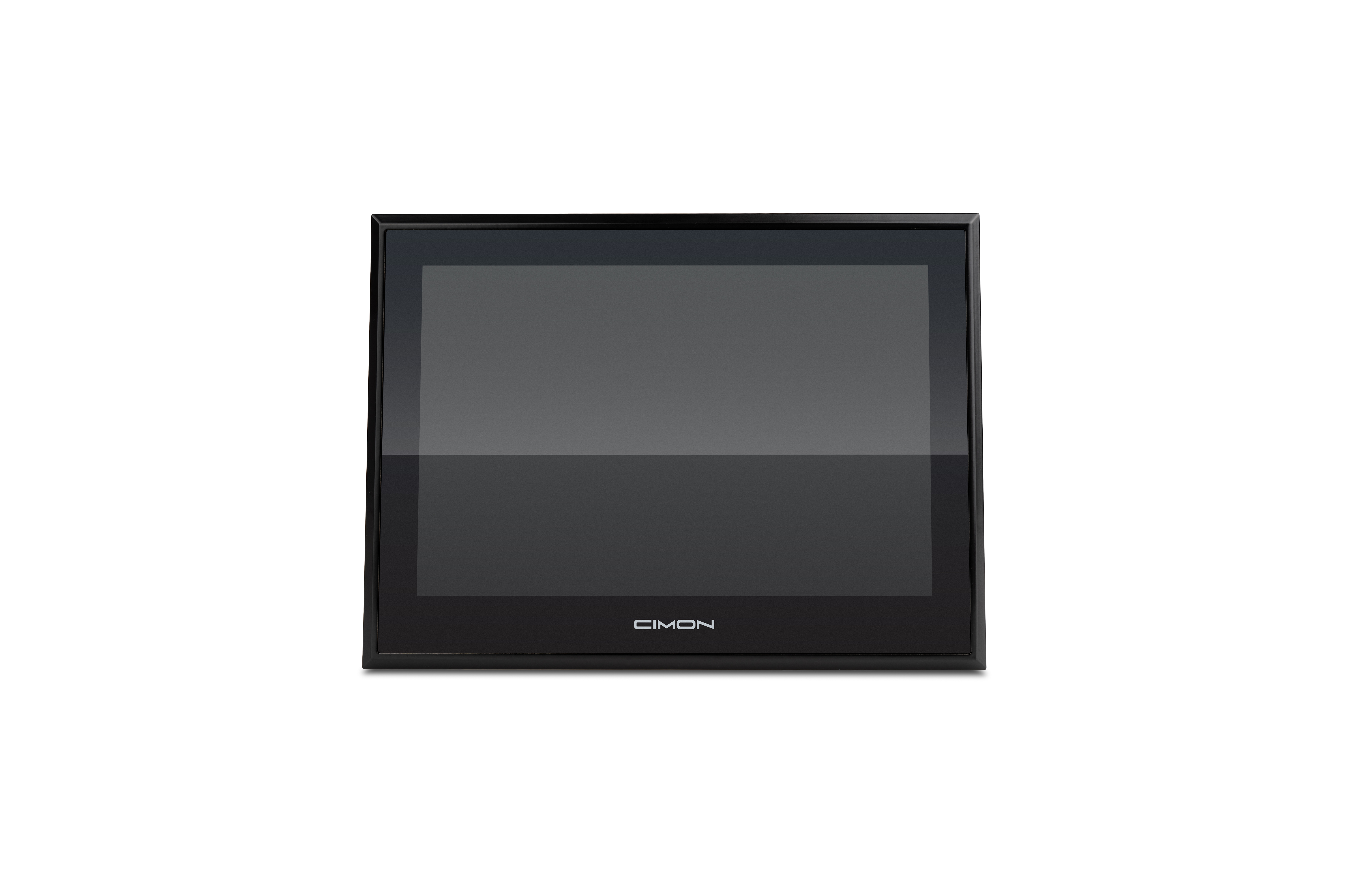

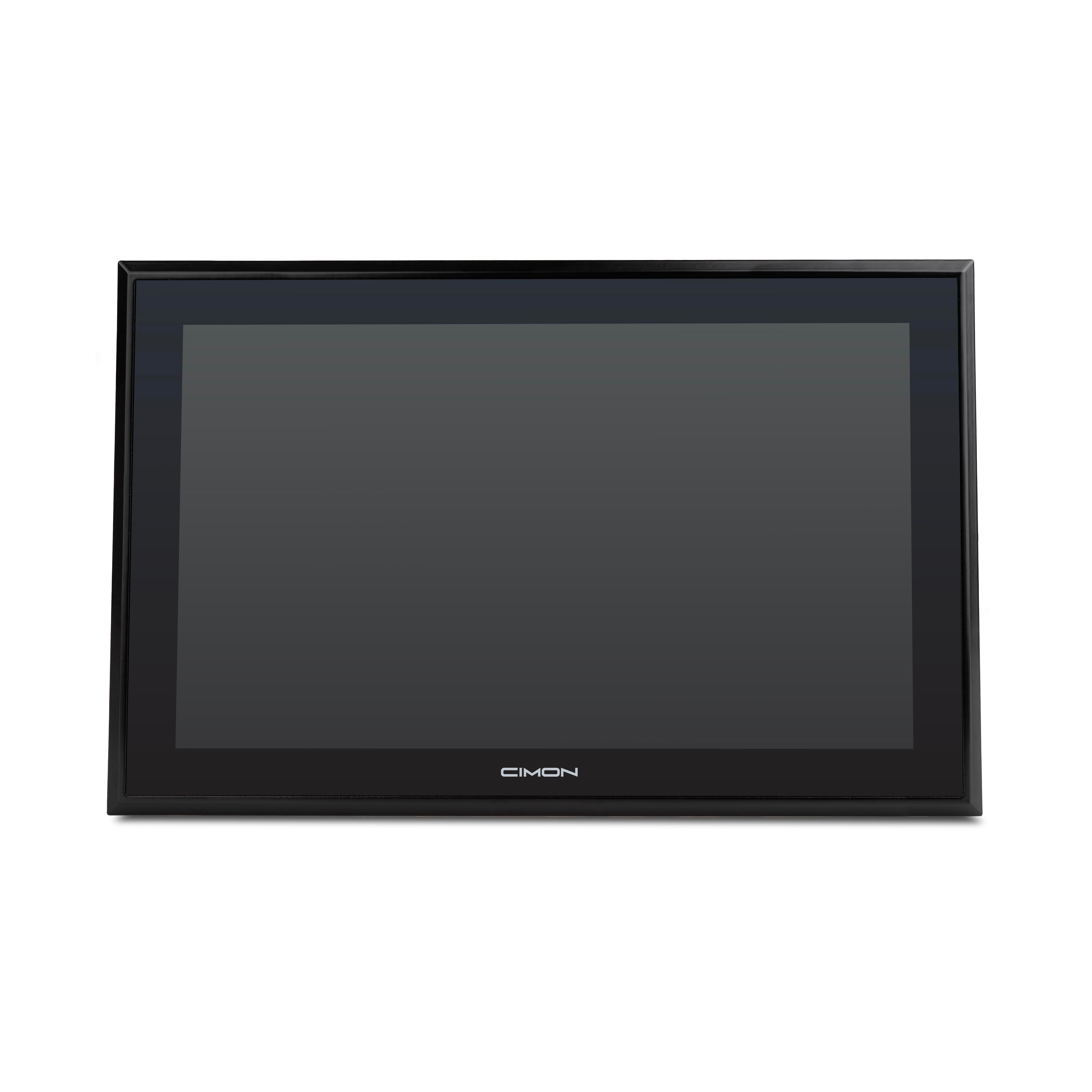

RH-DF (High-Brightness): Same as R-DF, but with increased luminance for enhanced visibility in outdoor or high-light environments.

All eXT2 HMIs use resistive touchscreens, ensuring accurate operation even when wearing gloves.

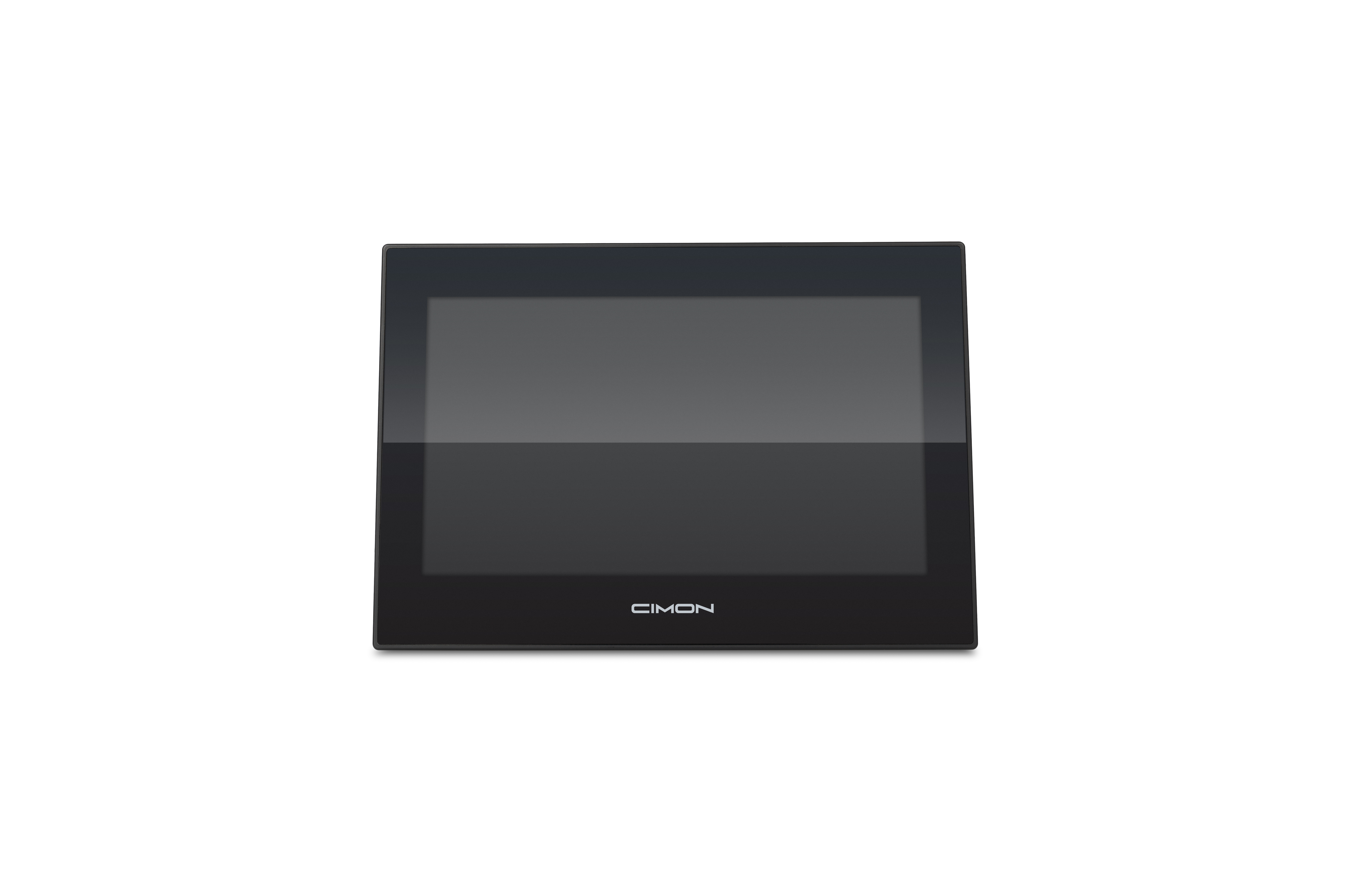

7-inch DE/DF: 12 W (Max 14 W)
10-inch DE/DF: 15 W (Max 16 W) | RH-DF: 20 W (Max 21 W)
12-inch DE/DF: 21.2 W (Max 22.7 W) | RH-DF: 21.6 W (Max 23 W)

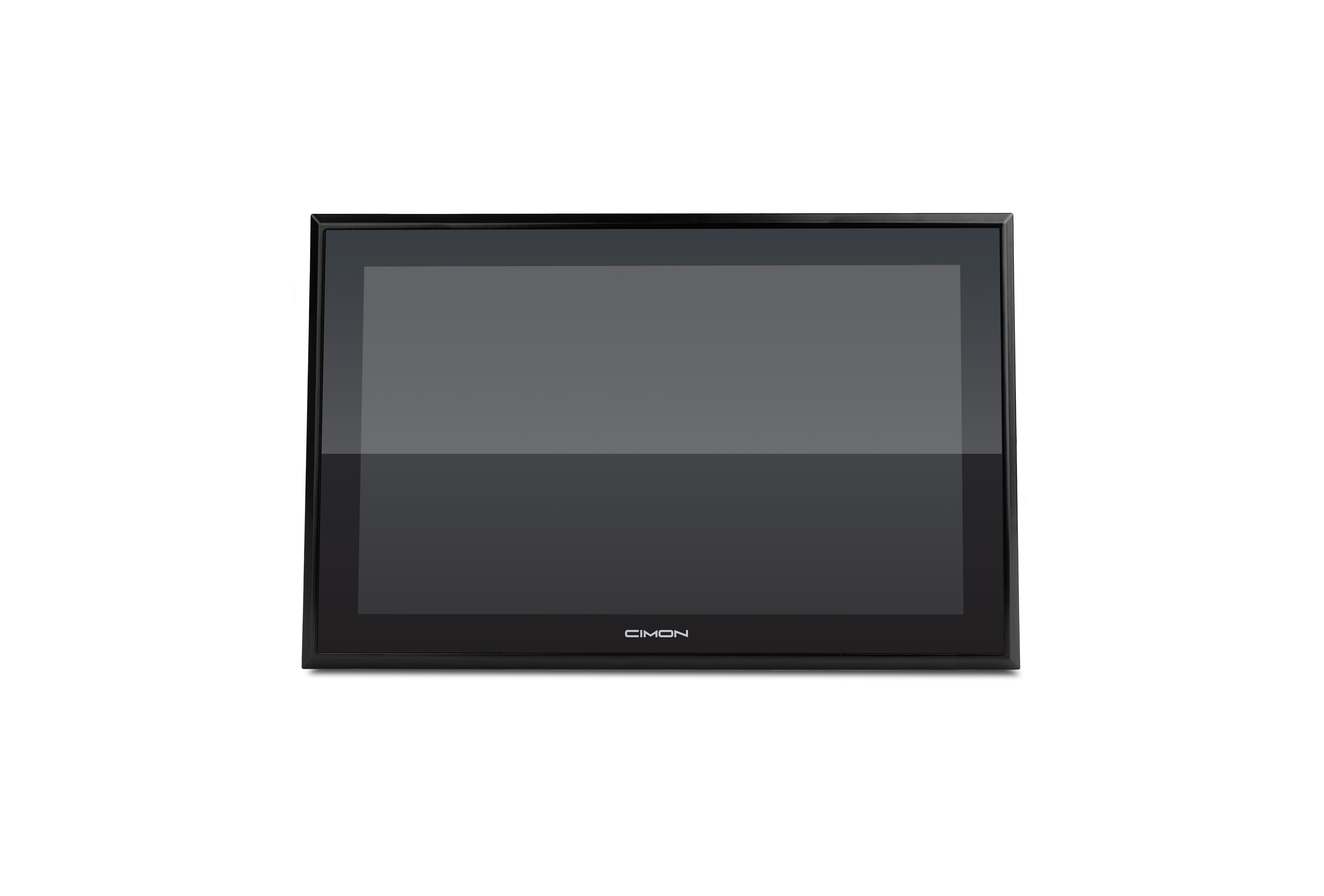

15-inch DE/DF: 23.5 W (Max 25 W) | RH-DF: 35 W (Max 36.6 W)
